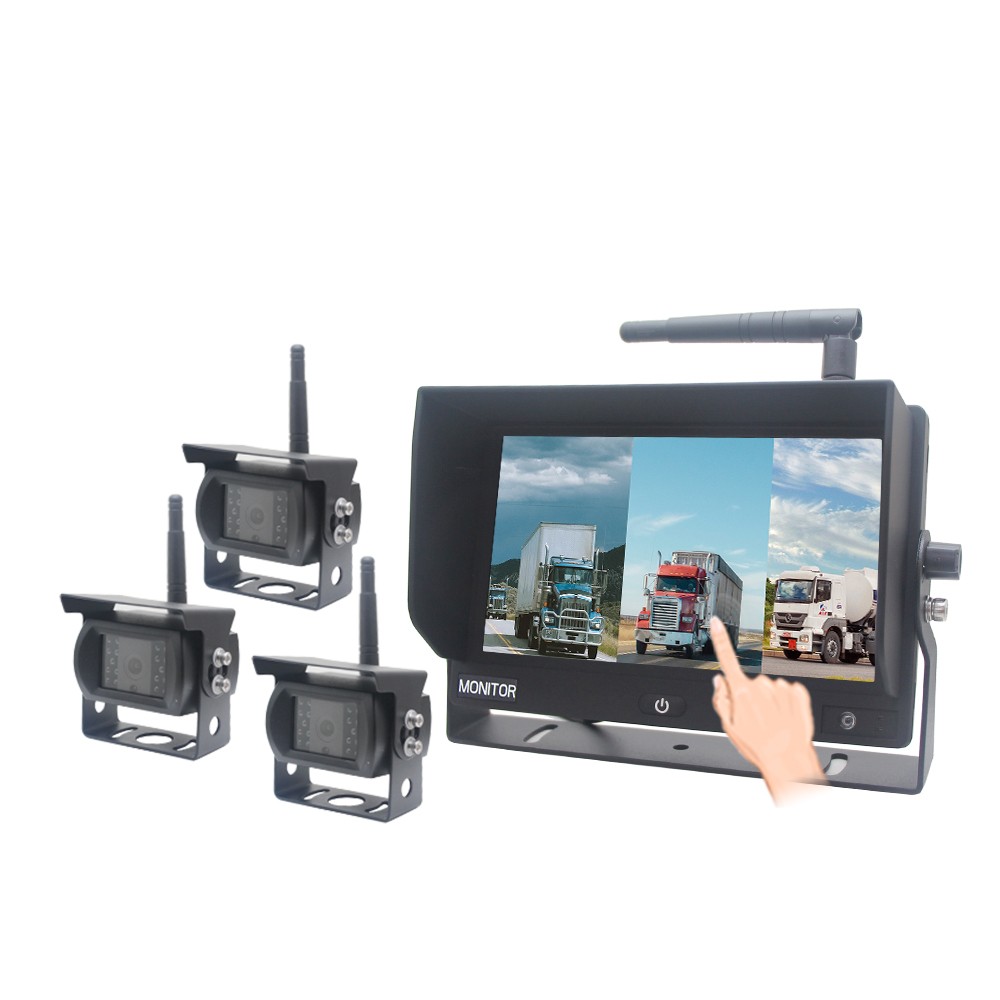

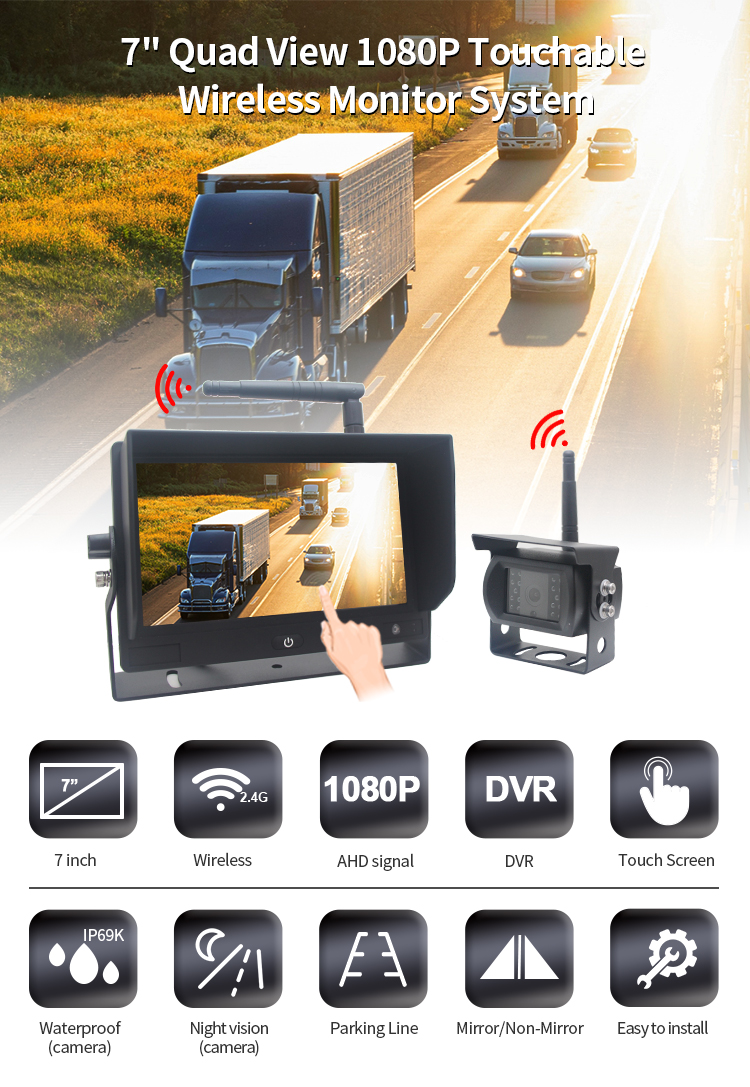

CM-709MDW-3 Full touch 7 inch 4 channels 1080P wireless car camera monitor system is easy to install without wiring, saving installation time and labor cost. Monitor features full touch screen and DVR recording function. Camera is sturdy durable features IP69K & HD night vision, providing clear view in any special environment. Within the open area the maximum transmission distance can reach 656ft, with stable signals & low latency. If you are looking for such high quality China wireless car camera monitor system for your fleet, please contact sales@aotop.com!
SYSTEM FEATURES

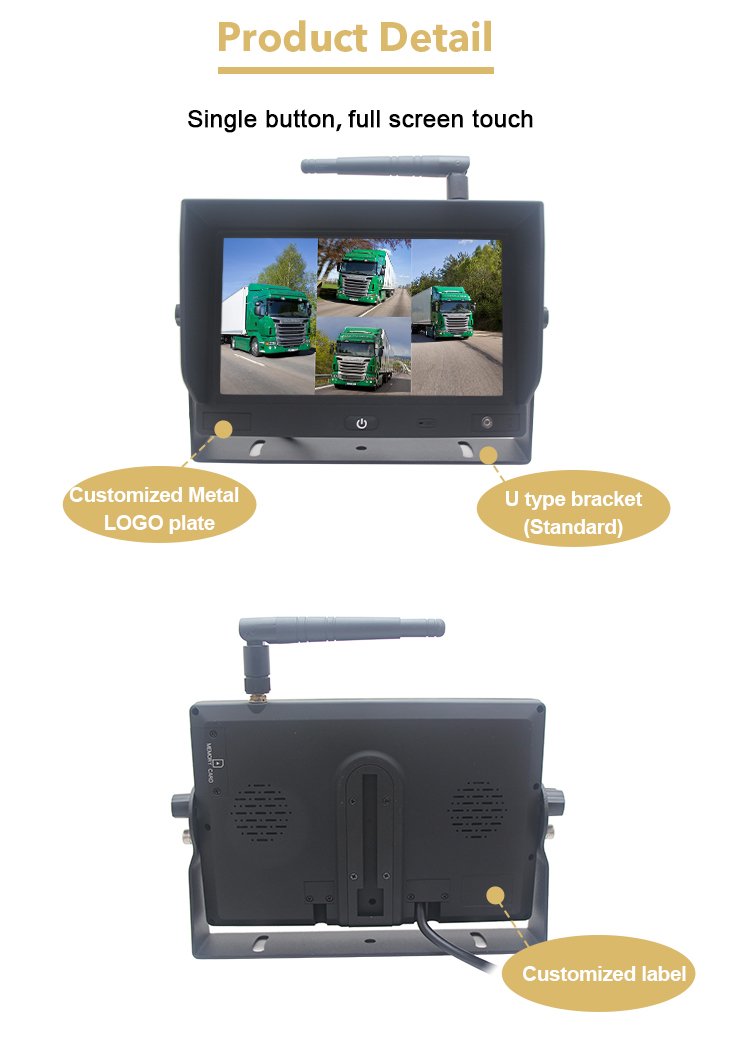

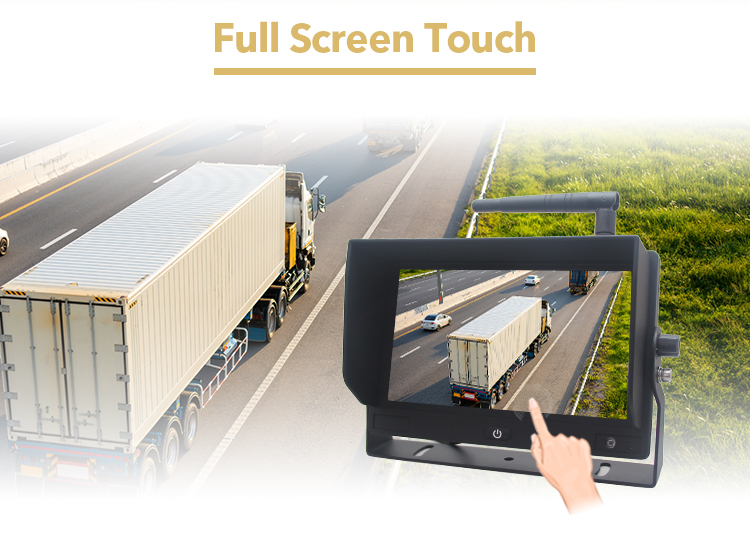

7 inch IPS LCD touchable screen, 1024*RGB*600 resolution.

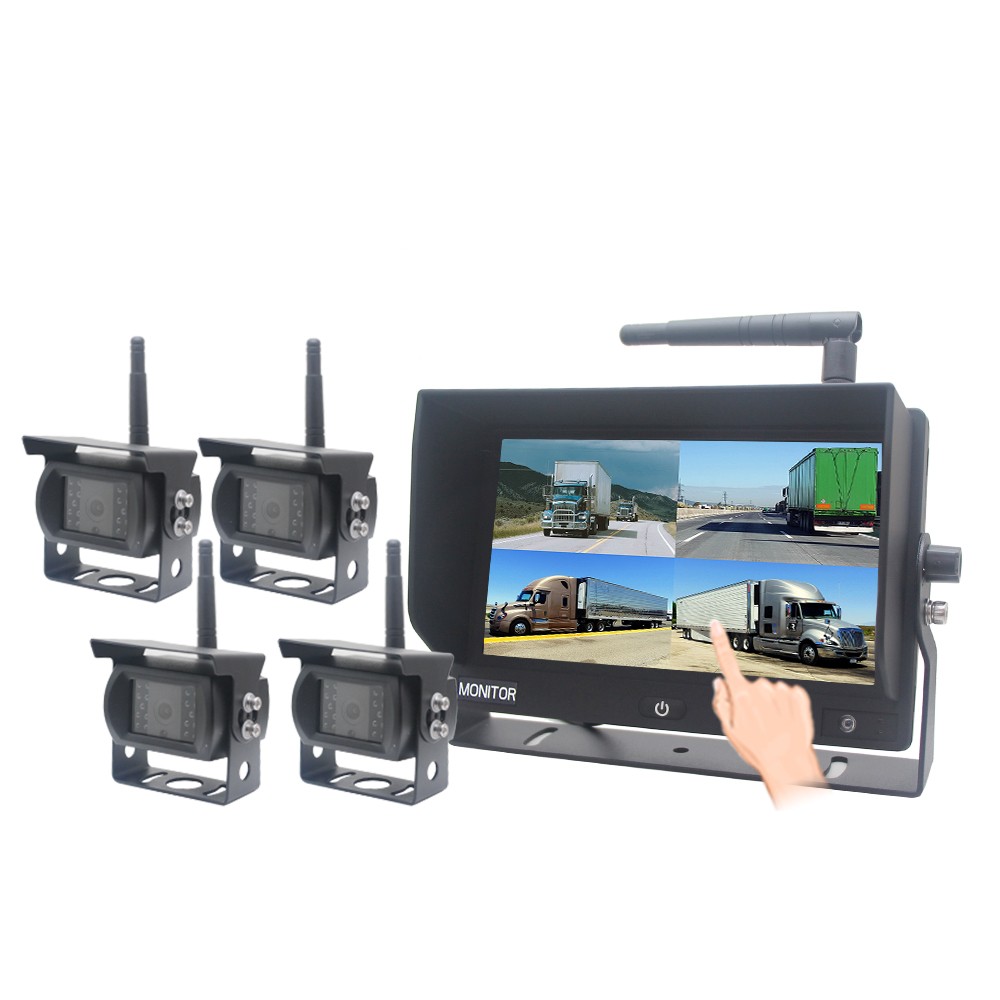

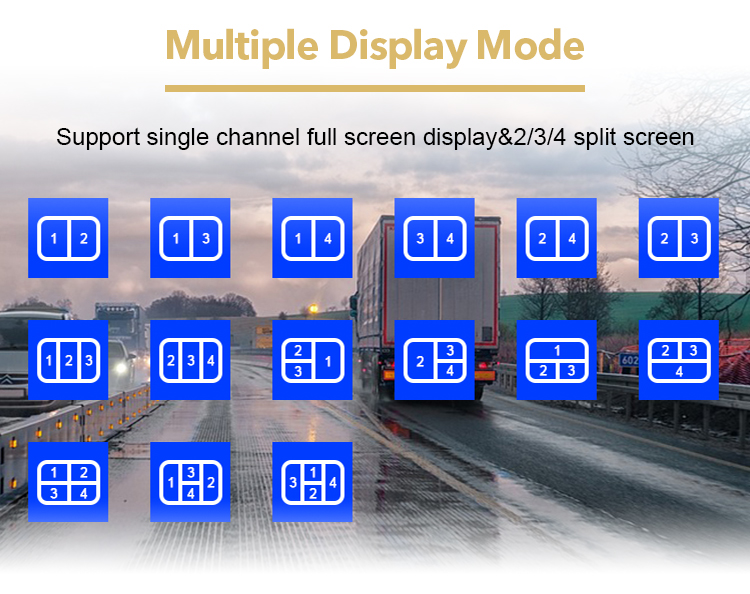

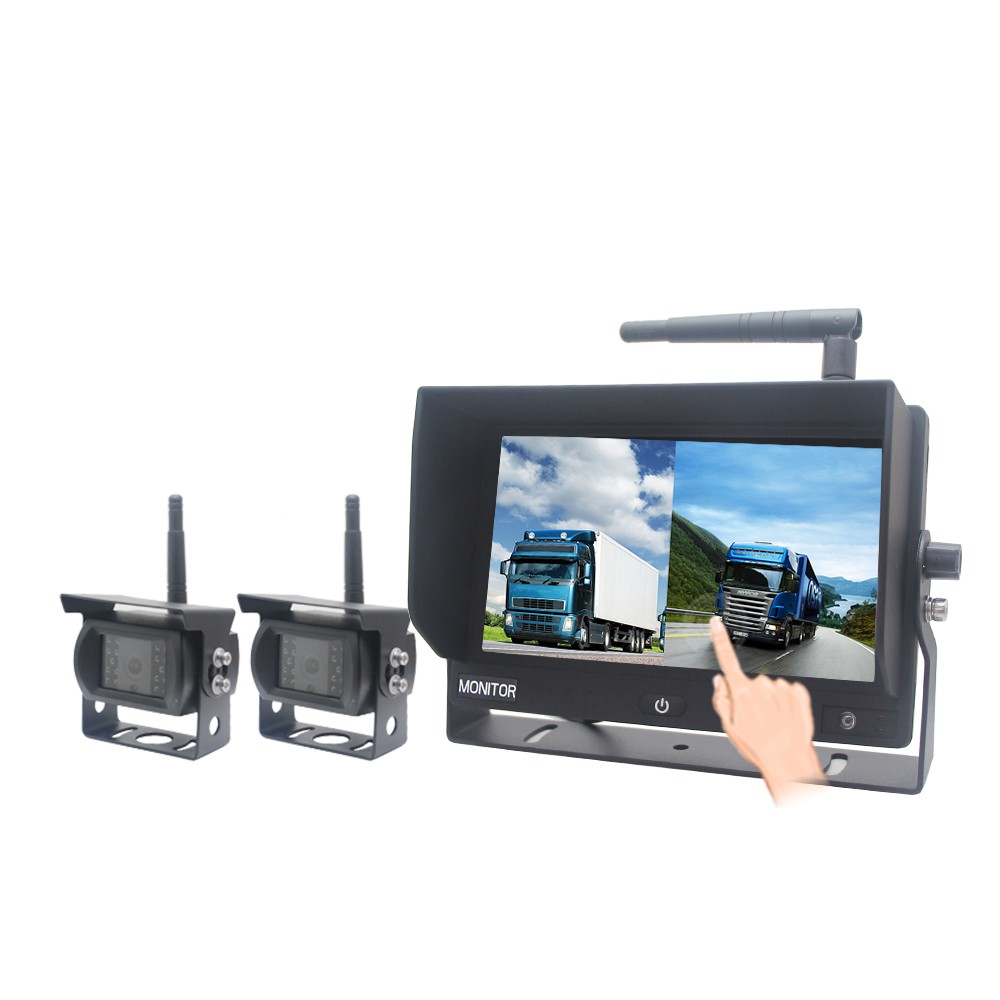

Support 4CH video signals input, a variety of monitors modes quad view, double view, triple view
and single view to meet various monitoring needs and reduce blind spots.

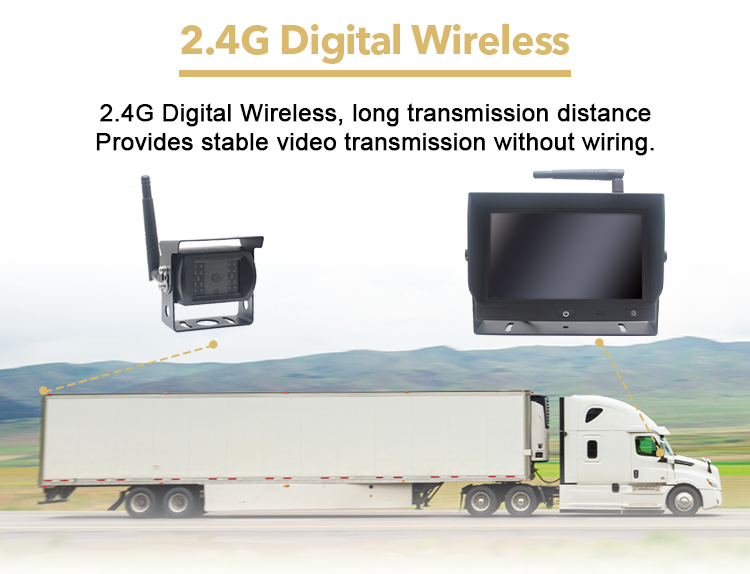

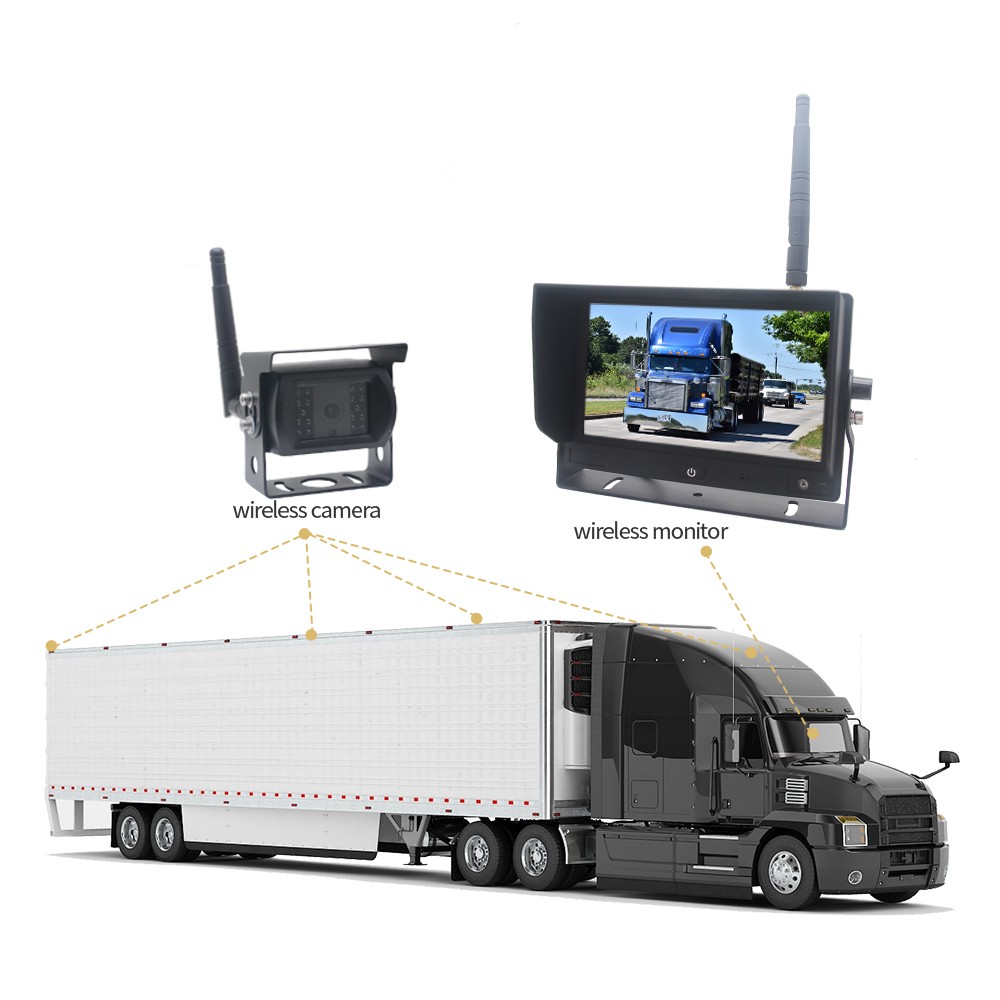

2.4G wireless signal transmission 656ft wireless transmission distance, without wiring easy to install.
Save money & time！
DVR function built-in 128GB memory card support 4CH real-time recording and video playback.
Rear view parking lines can be configured.
Support 1080P / 720P camera inputs
Camera features IP69K waterproof, HD night vision 120 wide angle etc.
Supports manual and AUTO pairing, easy to operate. After the first pairing is completed, just connect
the car power supply to work.
| Wireless Monitor | |
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | with |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working: ≤110mA |
| Power consumption | ＜3W |
| AV input | 1-4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | DC Cable |
| Wireless Camera | |
| Image sensor | CMOS 1/2.7” |
| Pixel | 1080P 1920*1080 pixels |
| Operating frequency range | 2400-2483.5MHZ |
| Transmission distance | 200M in open area |
| System | PAL/NTSC automatically |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission bandwidth | 8MHz BER<1E-3 |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing angle | Diagonal viewing angle 120° |
| Transmitting sensitivity | -89 dBm |
| Shell material | Black aluminium alloy |
