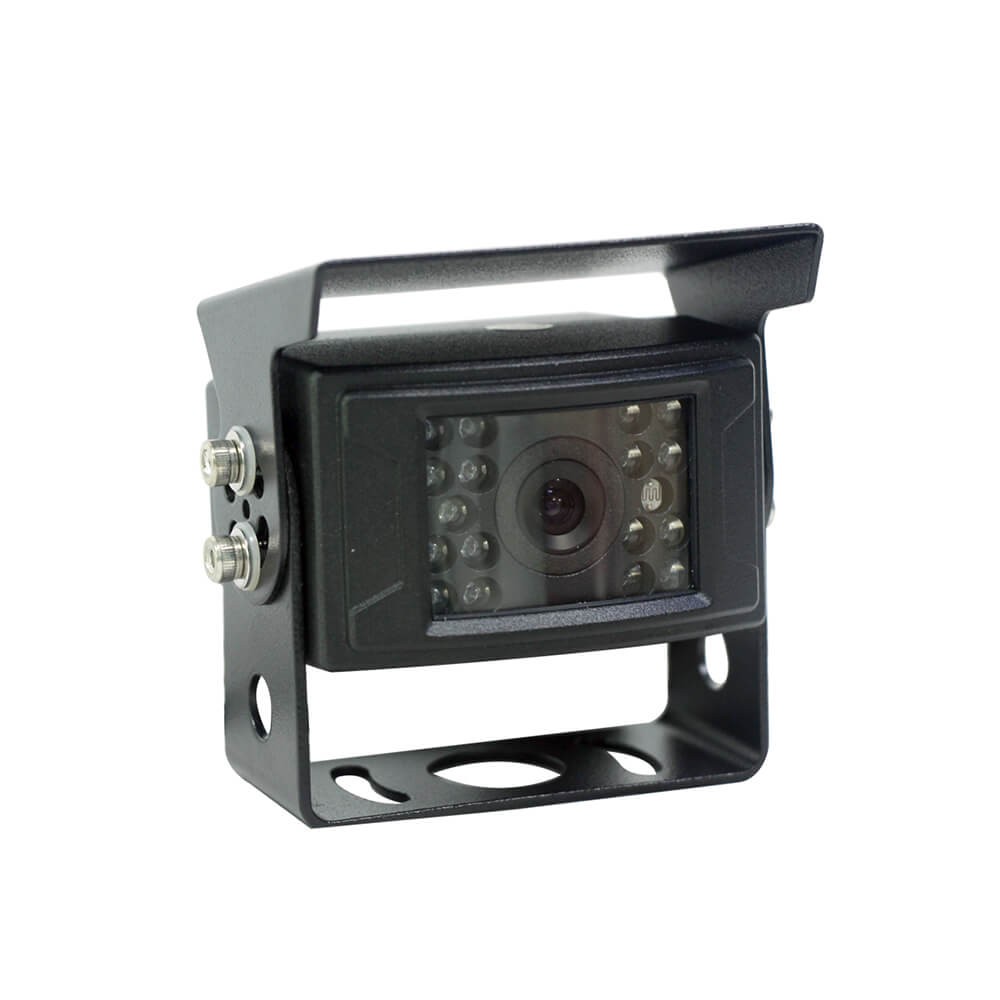

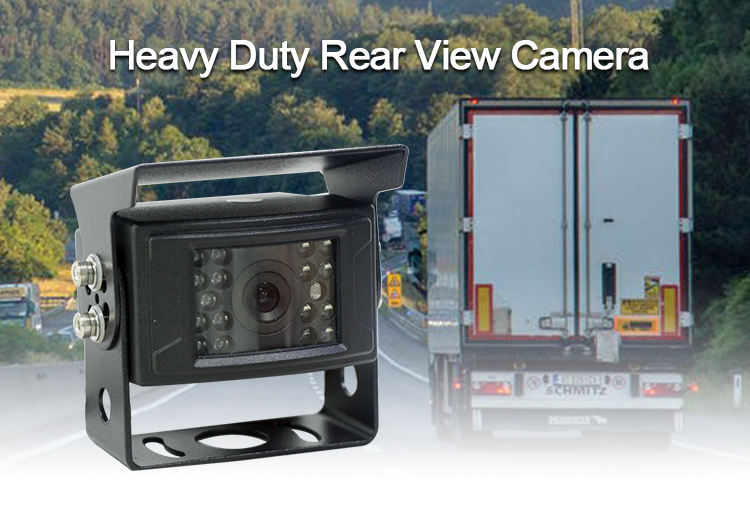

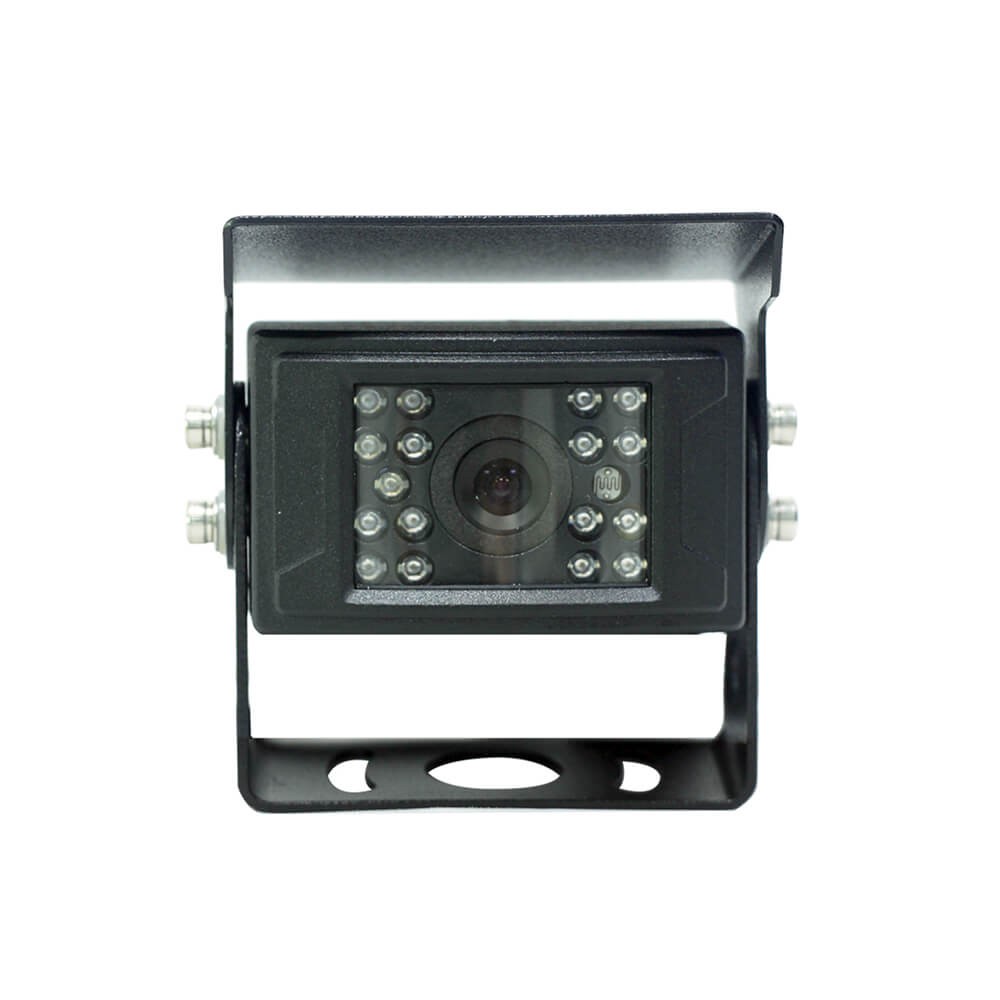

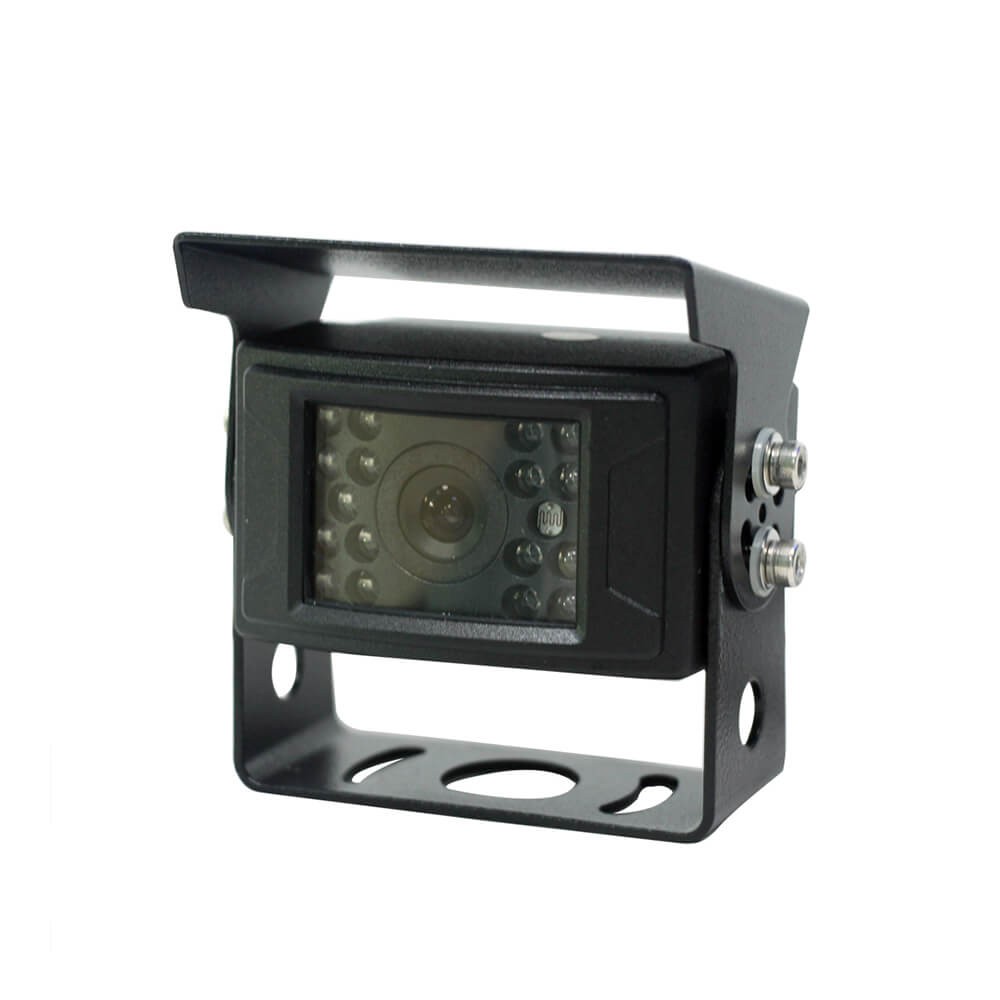

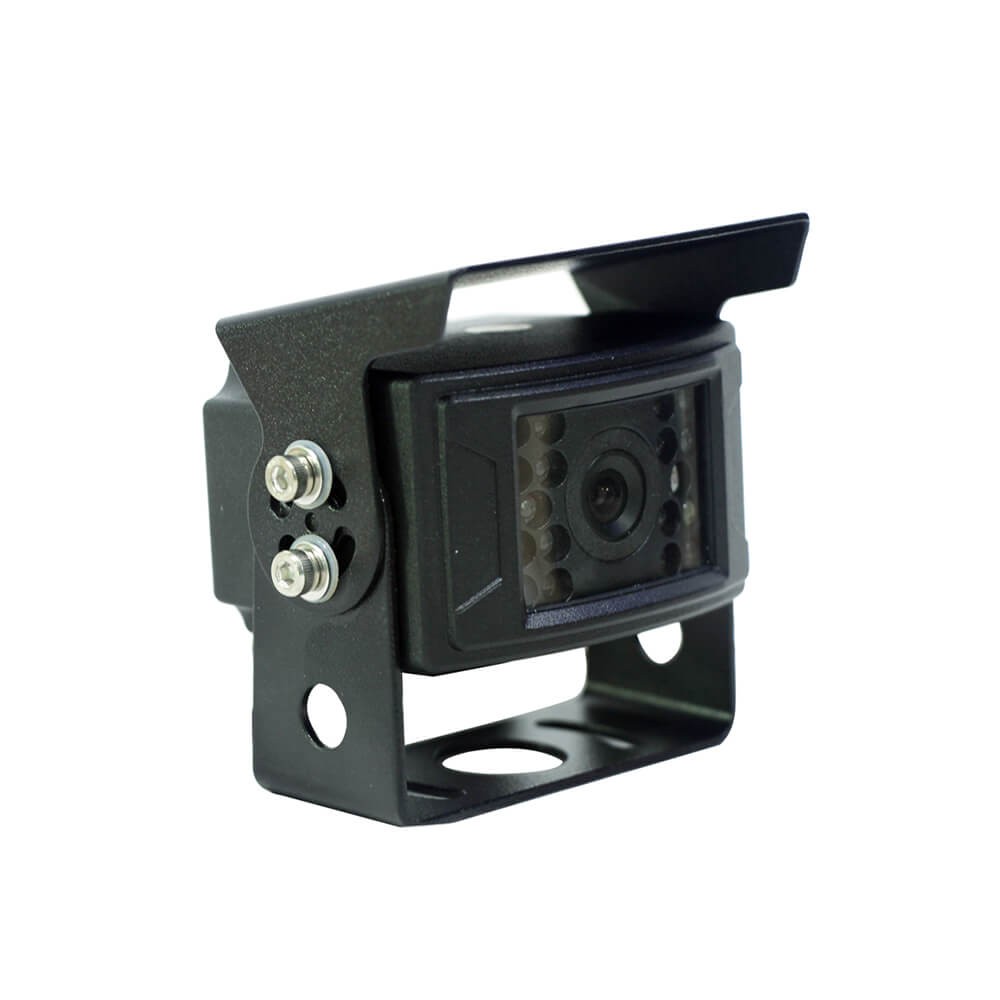

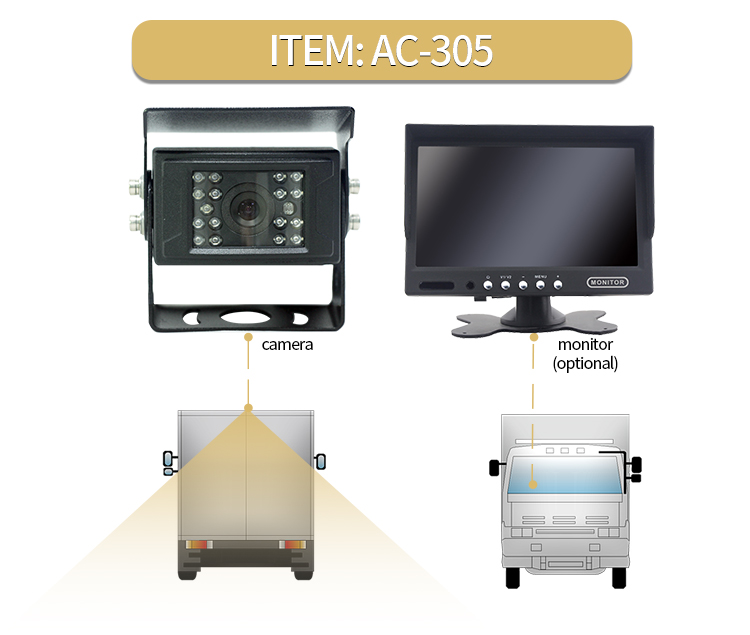

Aotop is a leading supplier & manufacturer of in-vehicle rear view camera in China, we provide a range of high quality commercial vehicle camera. Our AC-305 camera feature sharp CCD image processing chip, which can meet customers' requirements for high quality in-vehicle monitoring. 120° wide angle lens, wide monitoring range. Support HD night vision & IP69K waterproof. Is good for trucks, agricultural machinery, buses, sweepers, fire trucks, etc. If you are looking for a reliable rear view camera supplier in China, please contact sales@aotop.com!
PRODUCT FEATURES

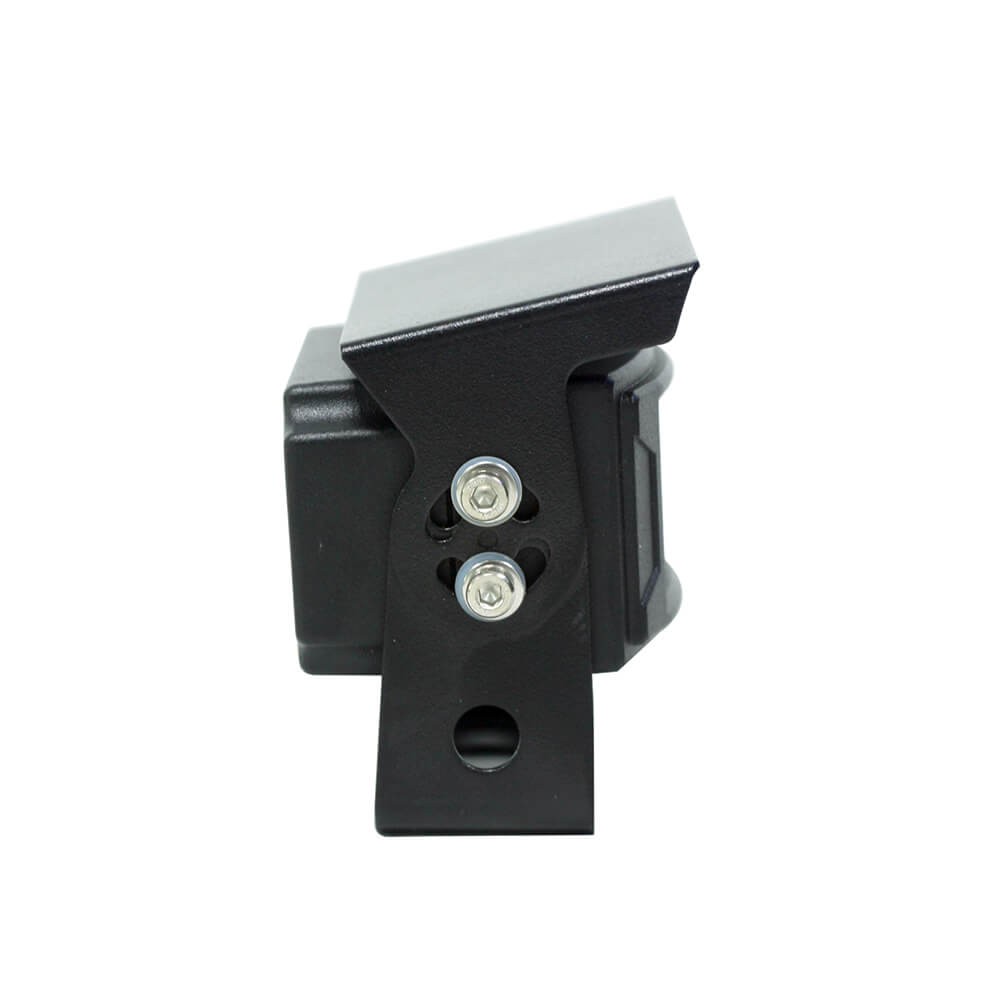

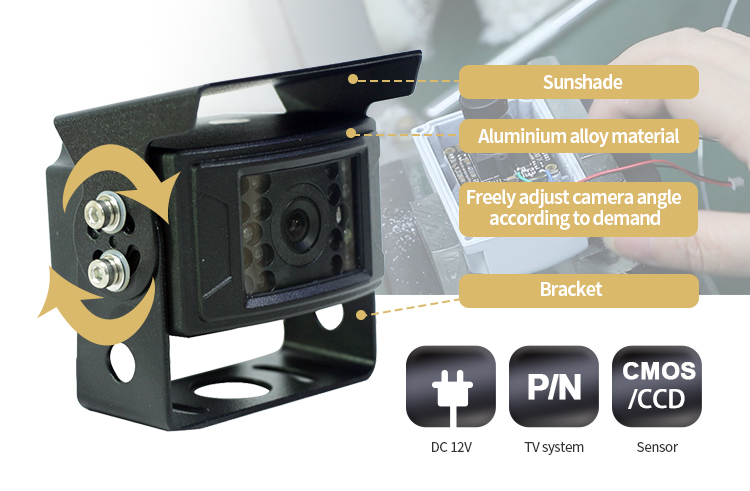

Sunshade movable bracket
CVBS & 720P 1080P AHD resolution optional
SONY CCD / Sharp CCD image sensor

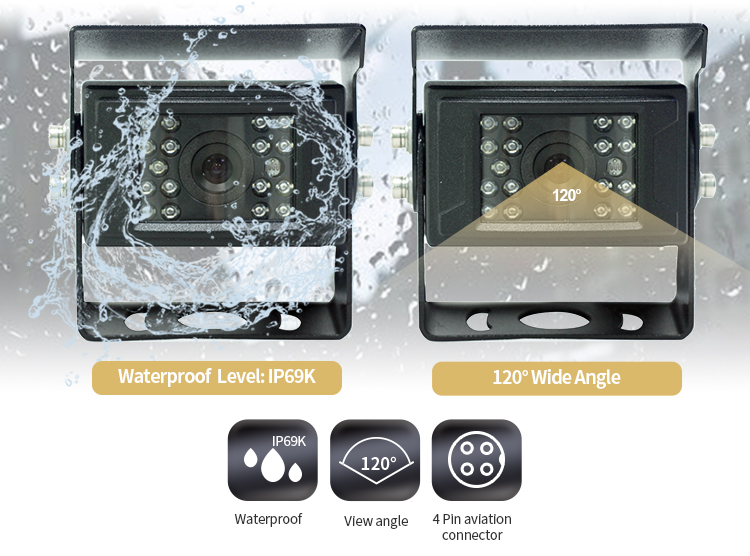

IP69K waterproof dustproof
120° wide angle (customisable)

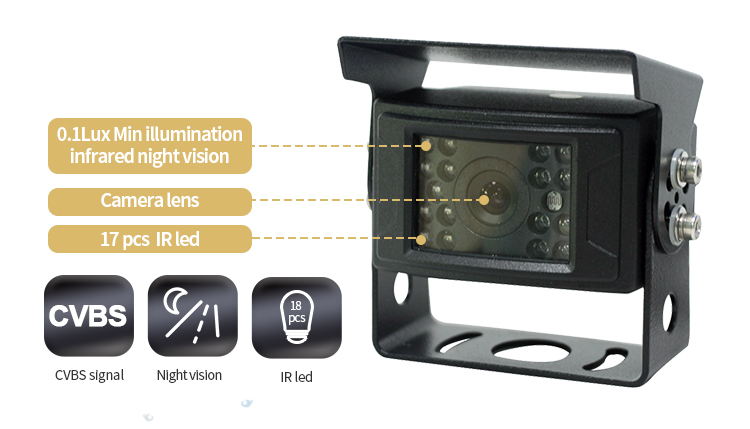

17pcs IR LED night lights (AUTO)
PAL & NTSC TV system

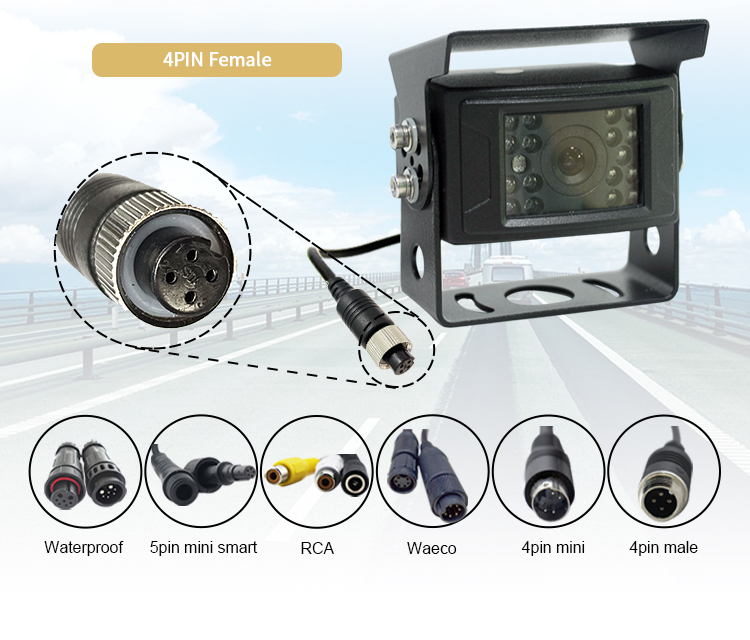

Aviation 4PIN female connector
Microphone audio function optional
| Image Sensor | SONY CCD |
| Effective Pixels | 1920(H) * 720(V) 1920(H) * 1080(V |
| Resolution | 720P / 1080P |
| Night Vision | Top Starlight Night Vision Built-in 17pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 120° |
| Waterproof Level | IP69K |
| Shockproof level | 4G |
| Housing Material | Aluminium Alloy |
| Connection Plug(Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Optional |
| Heating Function | Optional |
| Customisable | Color/Bracket/Connector/Angle°/Resolution |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating temperature | -20°c~+70°c (RH0%-RH90%) |
| Storage temperature | -30°c~+80°c (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, E-Mark, RoHS, IP69K |
