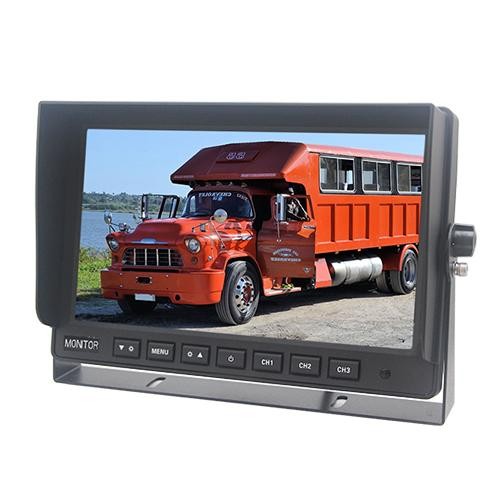

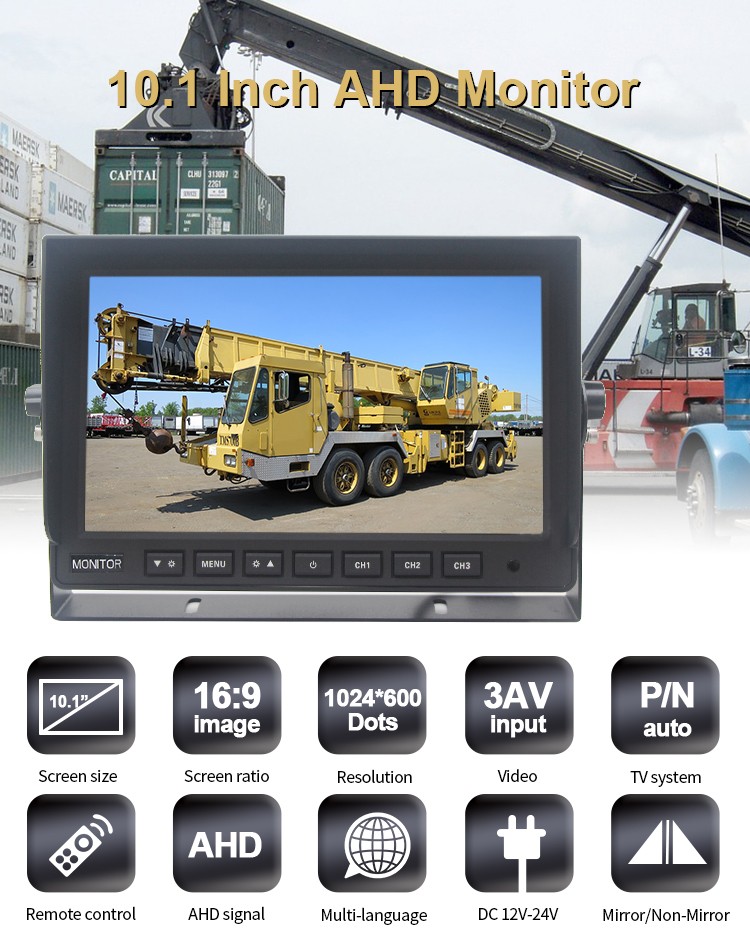

Aotop 10.1 inch IPS AHD rear view monitor is good for various large / commercial vehicles. It supports 3CH AHD video signal inputs, connecting three 1080p cameras to cover 3 areas around the vehicle. This ensures drivers can view clear HD images of the surroundings at all times, improving driving safety. Supports mirror switching, multi-language settings, PAL NTSC system making it suitable for users worldwide. If you are looking for high-quality vehicle monitors from China, please contact sales@aotop.com!
PRODUCT FEATURES

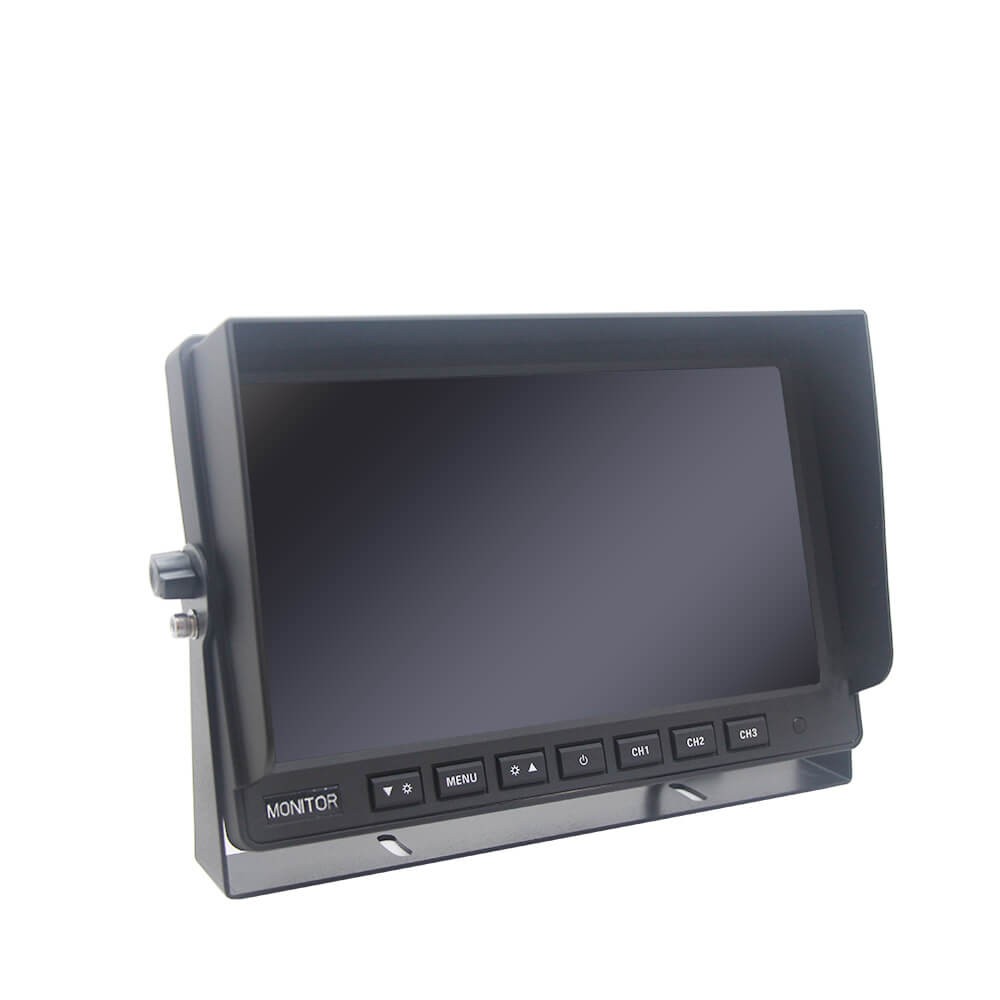

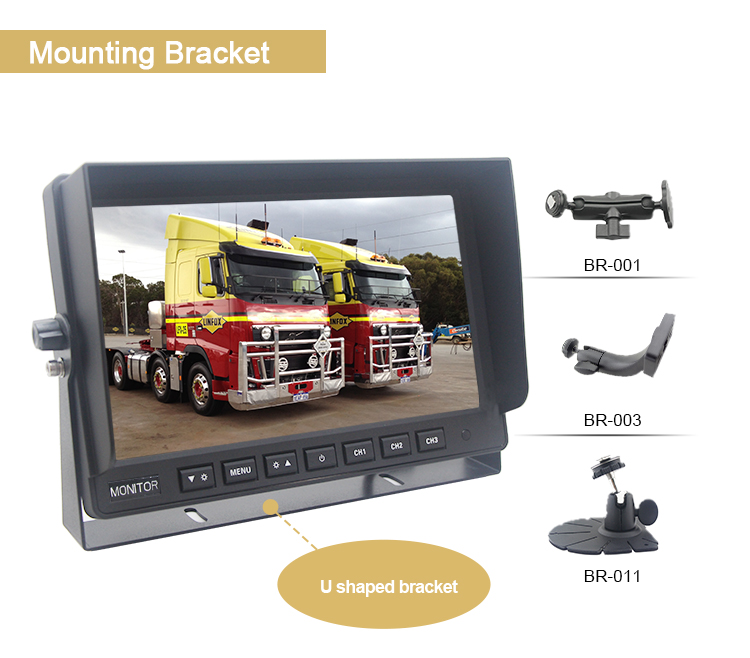

Sunshade cover & U-bracket
1024*RGB*600 resolution (IPS LCD screen)

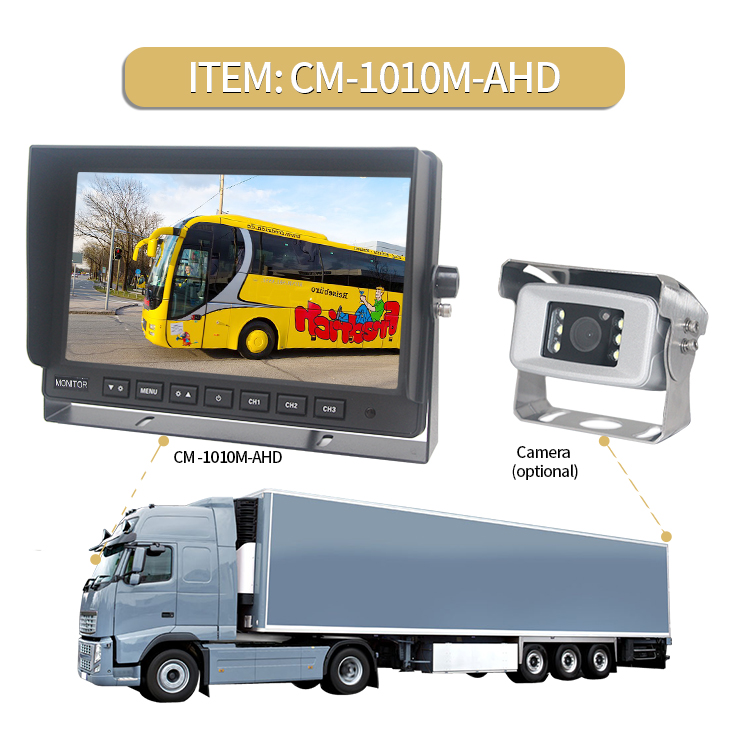

3CH x cameras video signal input
Multiple video formats available to cameras: 720P / 1080P / AHD / compatibility CVBS

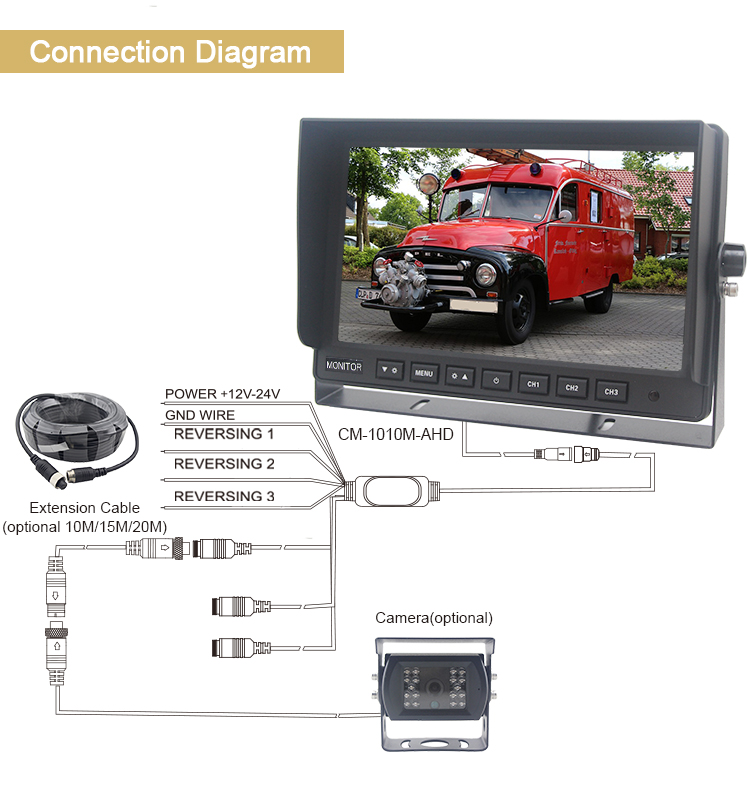

3 trigger lines input, trigger line definition, trigger delay & priority can be adjusted freely;
1CH audio signal input (high quality speaker)

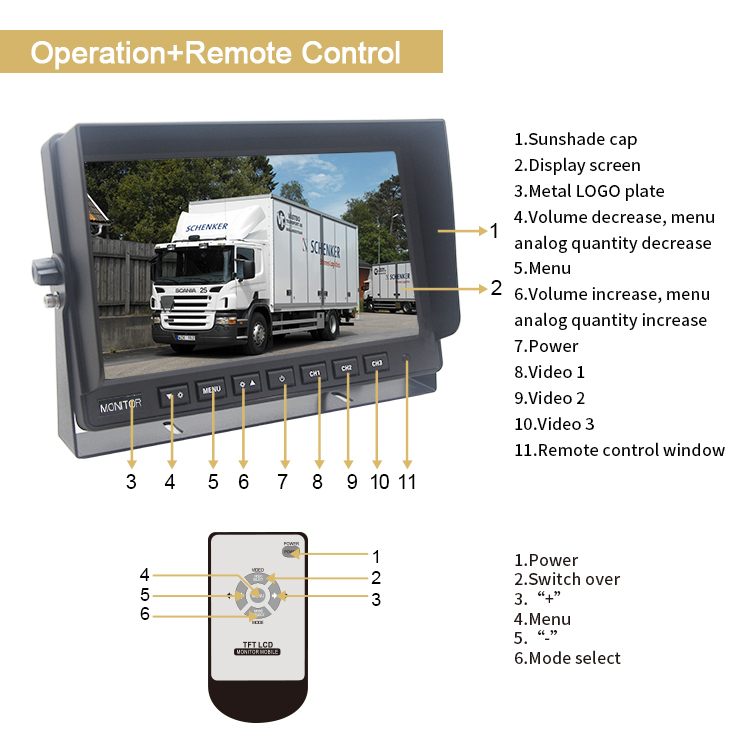

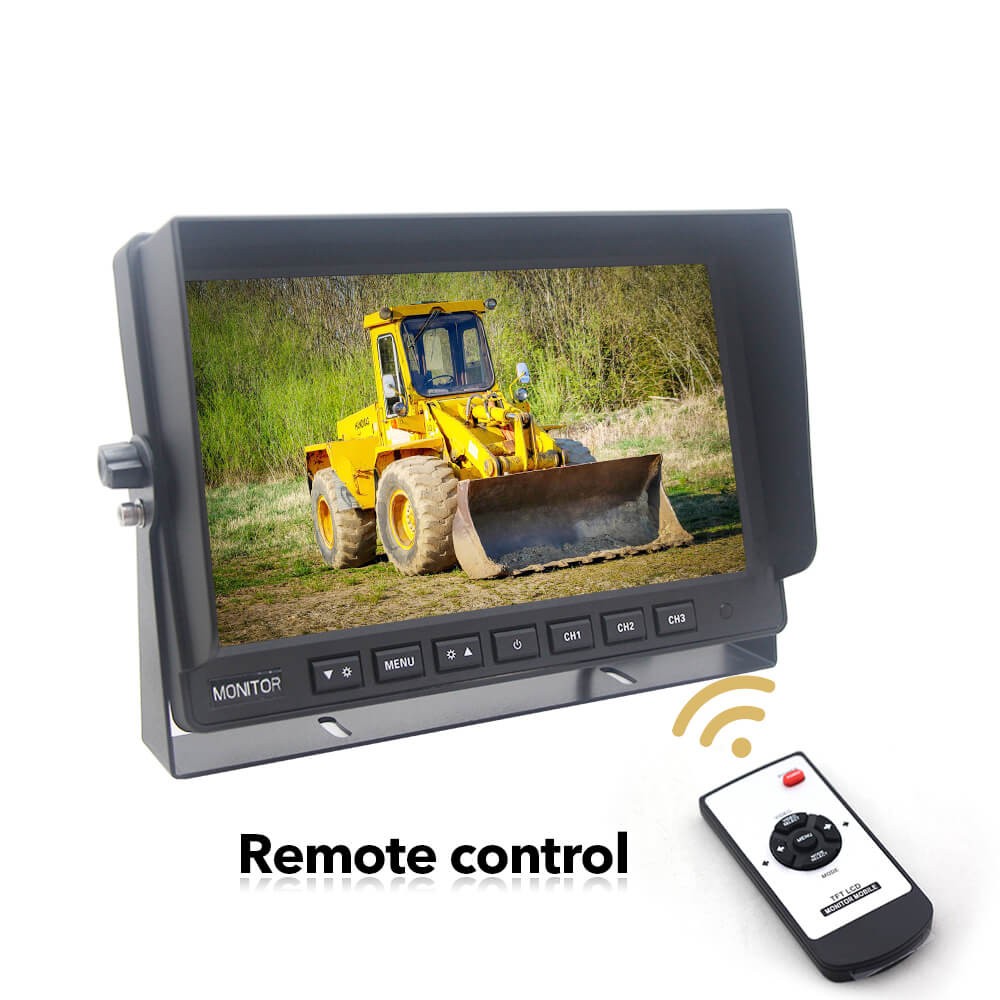

Full-function remote control
Multi-language settings
Horizontal mirror image switching; Image flip;
DC 12-24V wide voltage
AUTO adaptation PAL / NTSC system
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Luminance 400cd/㎡ |
| Resolution | 1024*RGB*600 |
| Contrast | 500:1 |
| Compatible System | PAL & NTSC (Automatically) |
| OSD Control | Image Setting, General Setting, System Setting, Volum |
| View Angle | UP-85°, DOWN-85°, LEFT-85°, RIGHT-85° |
| Power Supply | DC 12-24V |
| Boot Time | 2s |
| Current Consumption | DC12V/500mA |
| Power Consumption | ＜4W |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Working Humidity | 85%RH |
| Image Display | 3CH Single Image Display |
| Signal Input | 3CH AHD 1080P / 720P / CVBS Input, 2CH Audio Input. Compatible With CVBS / AHD Signals Compatible With PAL NTSC Systems |
| Trigger | 3CH Trigger Control, Could Set Reversing Delay |
| Speaker | Built-In |
| Language | English, Japanese, Korean, Russian |
| Parking Guideline | Off As Default |
| Mirror/Non-Mirror Image Display | Mirror As Default |
| Shockproof Level | 4G |

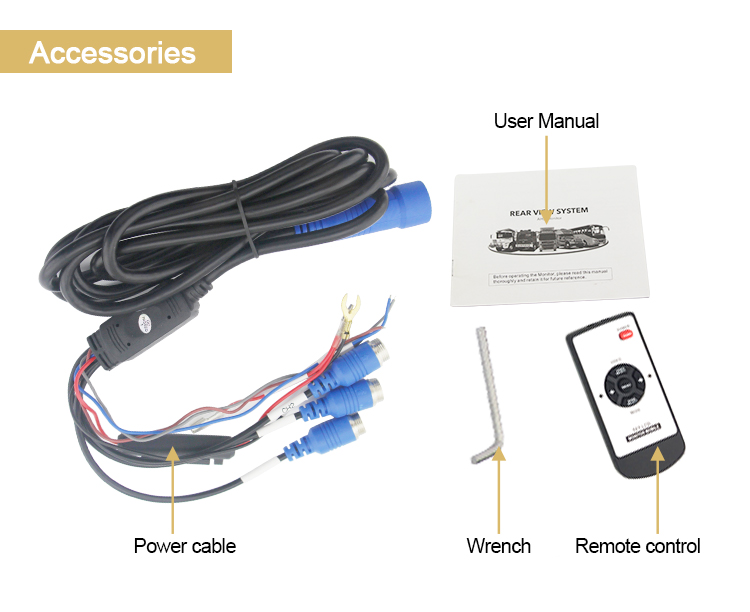

| Accessories | Remote Control, Power Supply Cable , User Manual, Sunshade, Wrench |
