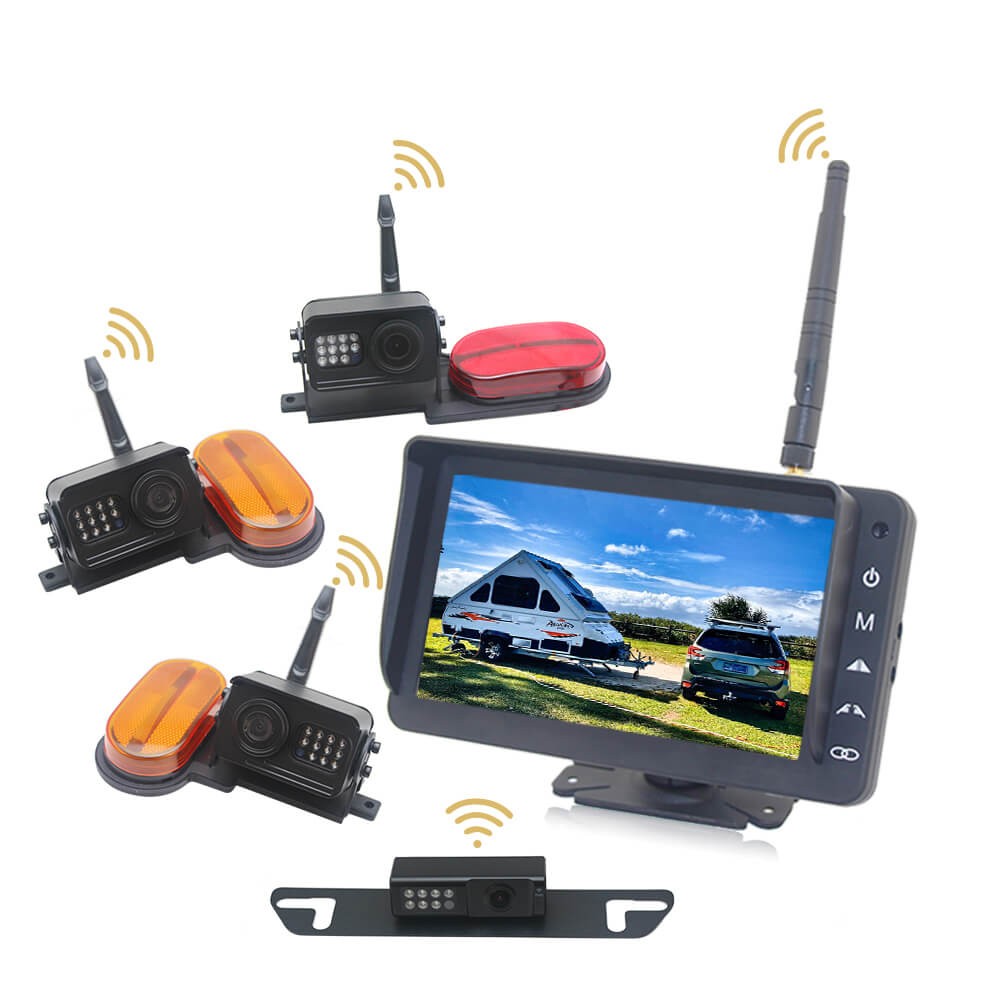

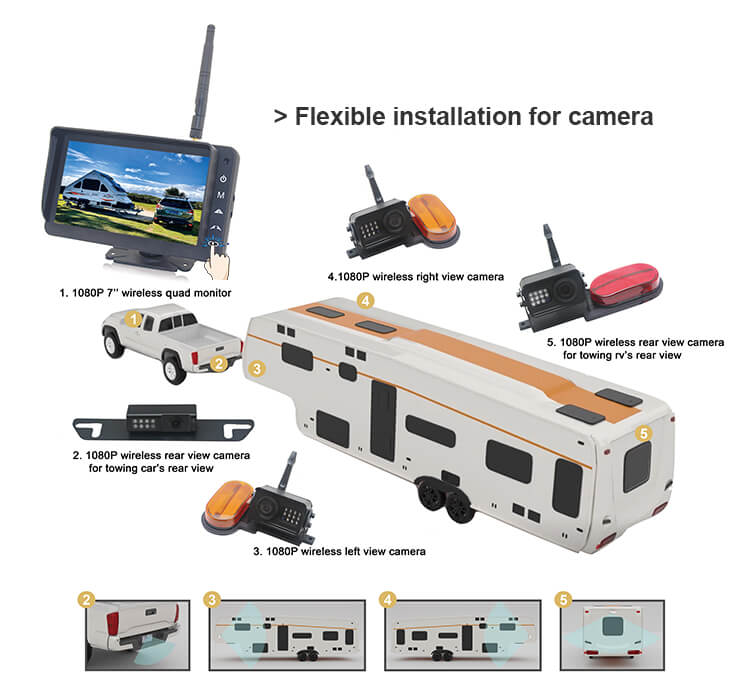

Aotop 7 inch 1080P HD wireless backup camera system, travel trailer can benefit from state-of-the art safety and security features. The package includes a quad 7 inch monitor paired with four high definition cameras for crystal clear viewing of up to 4 channels simultaneously at either 1080 resolution. For more information please contact sales@aotop.com.
SYSTEM FEATURES

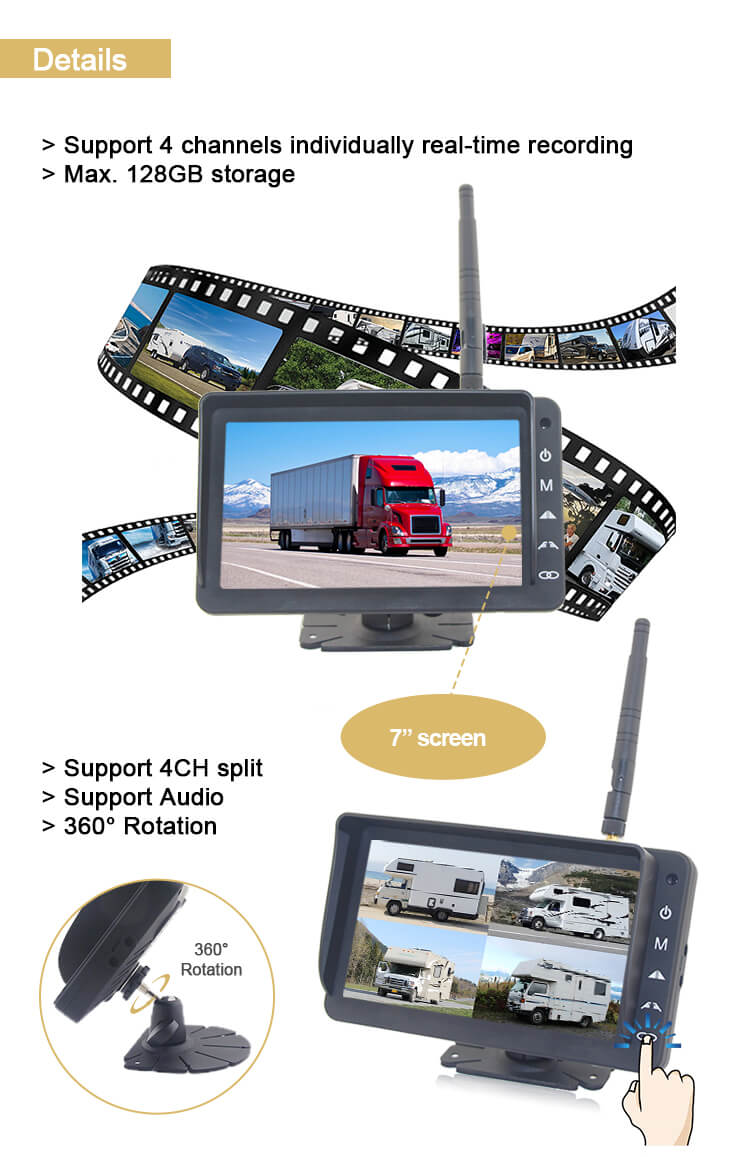

Touch Button, Security Quad View
4CH DVR Image Recording
200m (656ft) Connection Distance
4CH x 1080P HD Dedicated Camera
No Drilling, Easy To Install
Instant Automatic Pairing
| Wireless Monitor | |
| Model | CM-718MDW-HD |
| Screen ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Back light | LED, brightness 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |

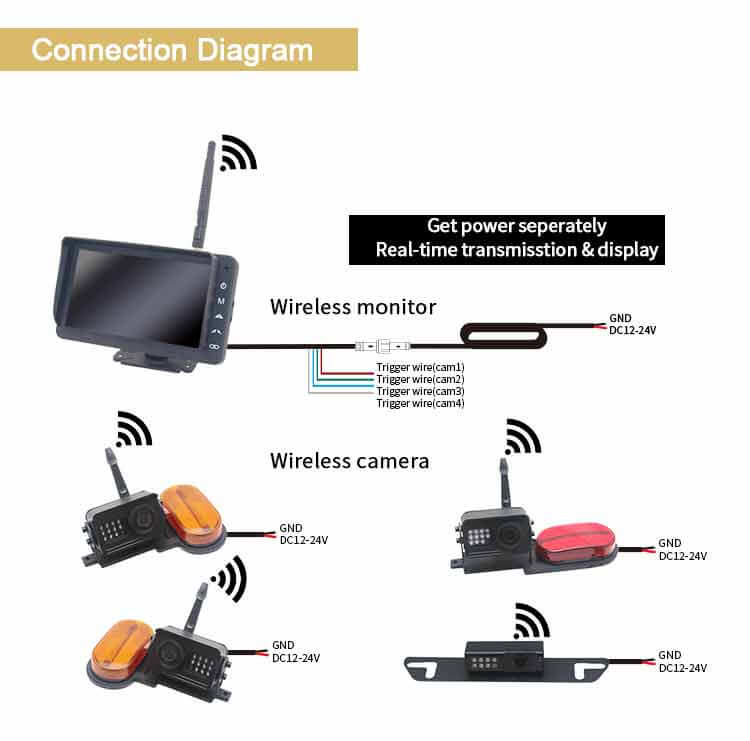

| Trigger | 4 trigger control |
| Wireless input | 1/2/4 channel HD wireless video signal input |
| Power Supply | DC12-24V |
| System | N/P Automatically |
| Working frequency | 2400 ~ 2483.5MHz |
| Latency | Less 200ms |
| Power consumption | ＜3W |
| Transmission distance | 200M in open area |
| Vibration rating | 4G |
| Audio | without(customized) |
| Built-in DVR recording | Max. 128G storage |
| Operating temperature | -20~+70 ºC |
| Storage temperature | -30~+80 ºC |

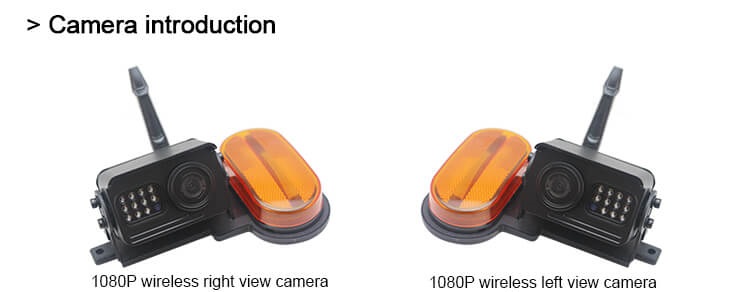

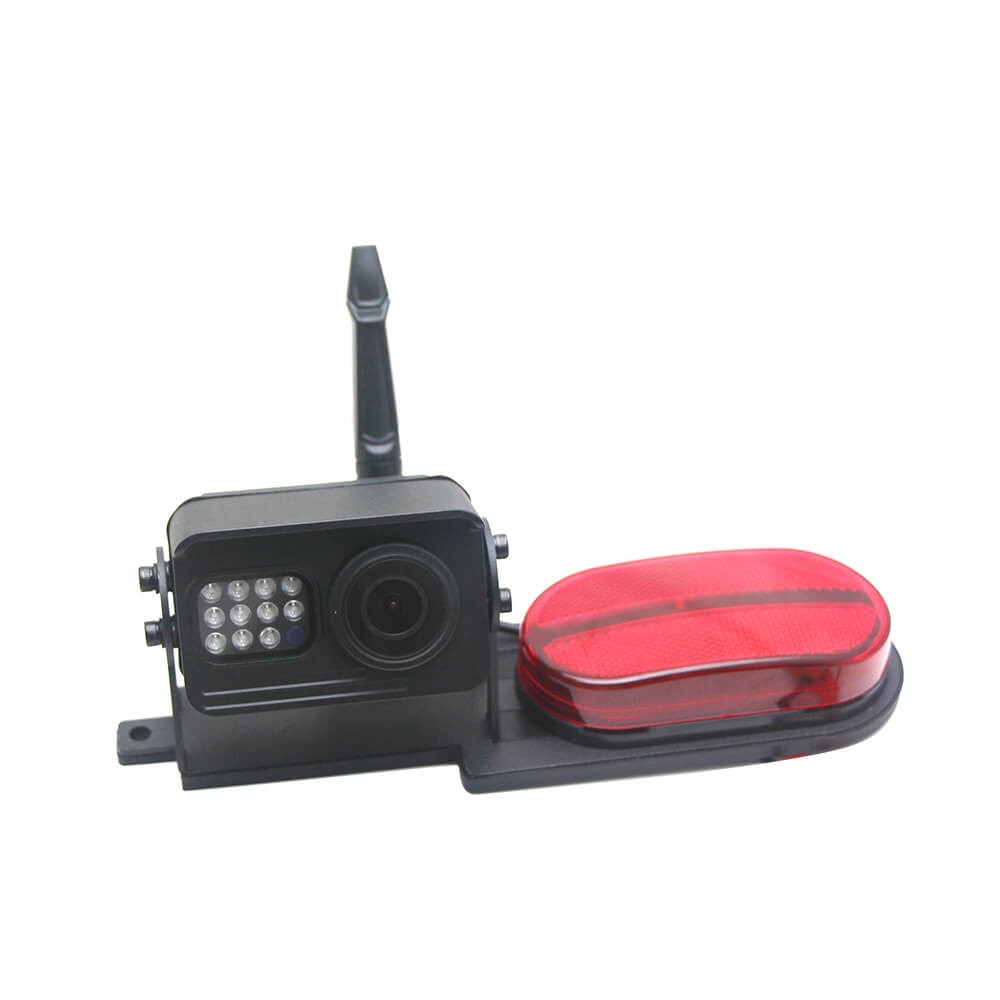

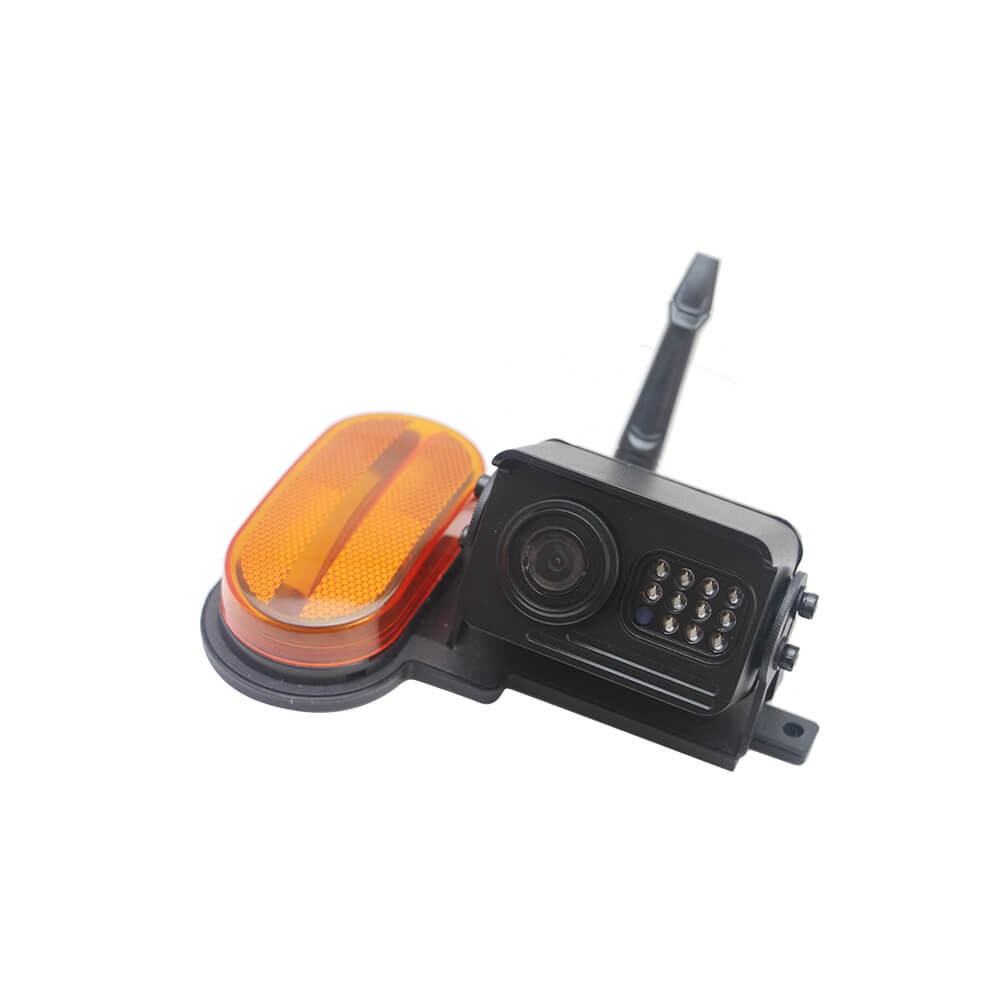

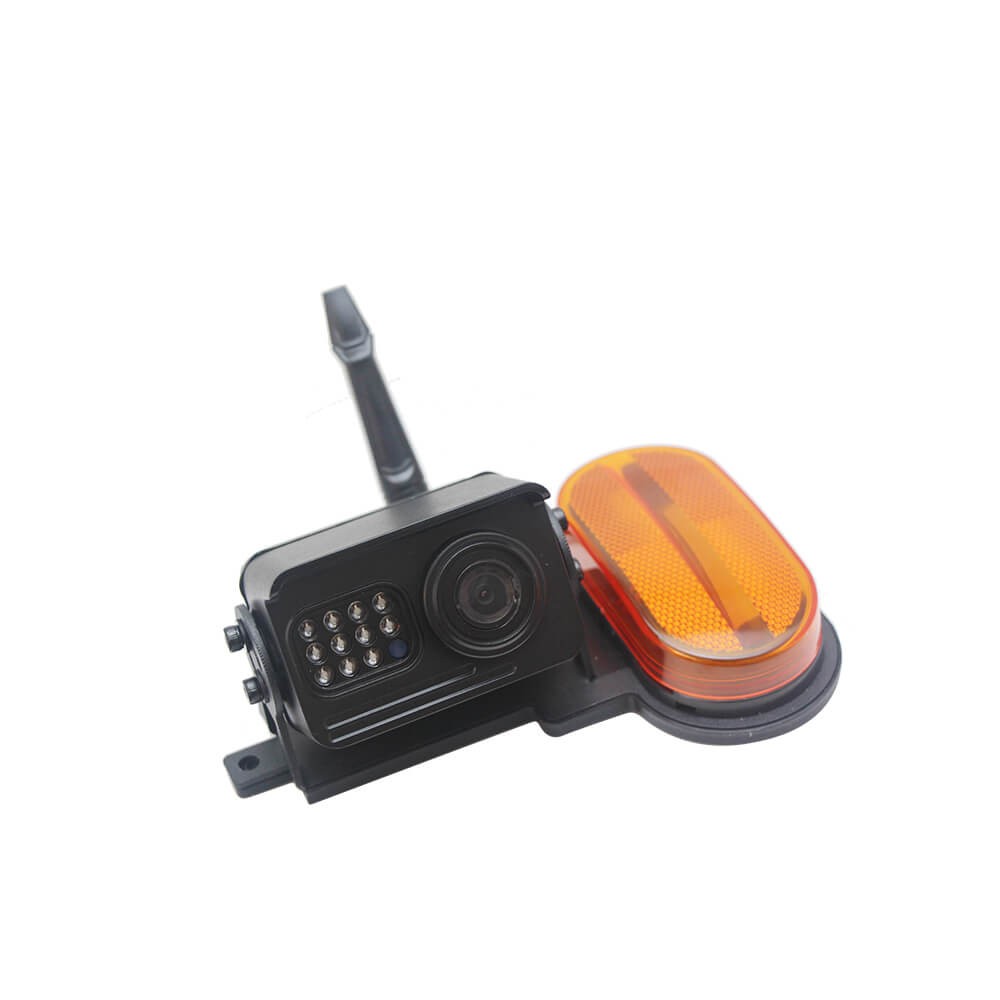

| AC-976MDWL & AC-976MDWR Features: | |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Power Supply | 150mA/12V |
| Latency | Less than 200ms |
| Transmission Power | 26dBm |
| Spread Spectrum | FHSS |
| Transmission Distance | 1650ft (barrier free) |
| Image Sensor | 1/2.7''HD |
| View angle | 120° |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Night Vision distance | 8-10m |
| IP Class (Protection type) | IP69k,waterproof |

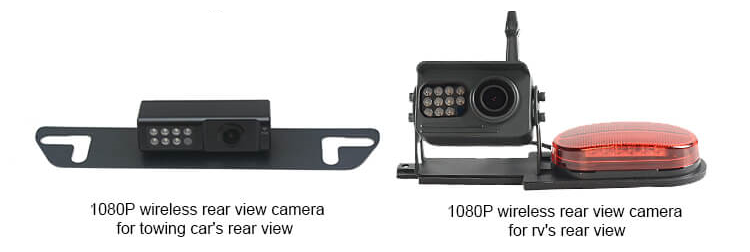

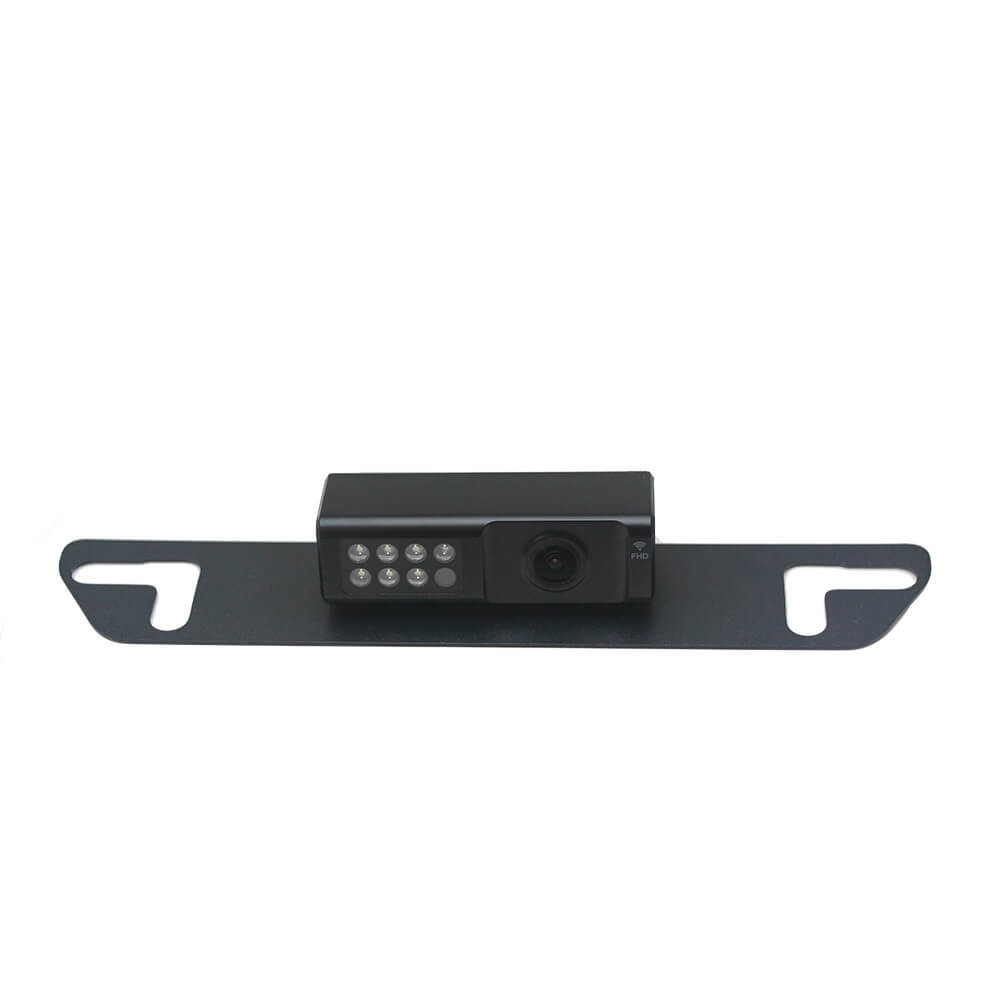

| AC-976MDWB1 Features: | AC-976MDWB2 Features: | ||
| Sensor | 1/2.7" COMS HD | Operating Frequency | 2.4GHz~2.4835GHz |
| Viewing Angle | 160° | Power Supply | DC+12V |
| AGC/BLC | Auto | Power consumption | 150mA/12V |
| White Balance | Auto | Latency | Less than 200ms |
| Operation Frequency | 2.4GHz--2.4835GHz | Transmission Power | 26dBm |
| Transmission Distance | 300m(984ft) | Spread Spectrum | FHSS |
| Transmission Power | 23dB | Transmission Distance | 1650ft (barrier free) |
| Latency | Less 200ms | Image Sensor | 1/2.7''HD |
| Spread Spectrum | FHSS | View angle | 120° |
| RF Bit Rate | 12Mbps | IR Control | Smart IR-CUT 650nm Day /850nm Night Auto |
| White light night vision | 4-5m | Night Vision distance | 8-10m |
| Power Supply | DC 10-18V | IP Class(Protection type) | IP69K,waterproof |
